Full Signal RS232 Fiber Modem

The series is a versatile device that supports asynchronous RS-232 communication interface Fiber Modem, with all supporting data RS232 handshake signals (DCD, DTR, DSR, RTS, CTS, RI) optical fiber transmission to the remote.

Overview

This series is a versatile device that supports asynchronous RS-232 communication interface Fiber Modem, with all supporting data RS232 handshake signals (DCD, DTR, DSR, RTS, CTS, RI) optical fiber transmission to the remote. The device is connected to a remote terminal unit (RTU) to the host (HOST) or the best choice for distributed data acquisition system (SCADA) controller with high performance and low cost. Serial port communication rate up to 256Kbps, for mobile base stations remote signal, power remote signal, serial telephone line Modem, transmission, and network monitoring and other occasions.

As a result of the fiber as a transmission medium, you can completely avoid the threat of harsh environments lightning, surges, electromagnetic interference, and other communication devices while eliminating the investment surge lightning protection devices when the original use of copper.


Features

  • Have the ability to automatically detect the serial signal baud rate.

  • Serial port communication rate up to 256Kbps

  • RS232 handshake (DCD, DTR, DSR, RTS, CTS, RI) to fiber optic remote.

  • Wide input voltage range (DC7V-DC36V), and automatically detects the polarity of the DC power input.

  • Serial port interface 600W surge protection, 1500V electrostatic protection

  • Can form E1 serial converter (A) -E1 Fiber Modem (B) -Fiber Serial Modem (C) topology.


Parameters

Fiber
Multi-Mode Fiber

50/125um, 62.5/125um,

Maximum Transmission Distance:

5Km

Transmission Distance:

5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)

Wavelength:

820nm

Transmitting Power:

-12dBm (Min) ~-9dBm (Max)

Receiver Sensitivity:

-28dBm (Min)

Link Budget:

16dBm

Single-Mode Fiber

8/125um, 9/125um

Maximum Transmission Distance:

40Km

Transmission Distance:

40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

Wavelength:

1310nm

Transmitting Power:

-9dBm (Min) ~-8dBm (Max)

Receiver Sensitivity:

-27dBm (Min)

Link Budget:

18dBm

Serial Interface
Standard

EIA/TIA-232 RS-232 (ITU-T V.28)


Serial Interface

DCE interface: Female type DB9

DTE interface: Male type DB9


Working Environment

Working Temperature:

-10°C ~ 50°C

Working Humidity:

5% ~ 95 % (no condensation)

Storage Temperature:

-40°C ~ 80°C

Storage Humidity:

5% ~ 95 % (no condensation)

Specifications

Model

Model Number: 9101-901-003

Functional Description

Full Signal RS232 Fiber Modem, Support all RS232 handshake signals (DCD, DTR, DSR, RTS, CTS, RI) to the optical fiber transmission

Port Description

One Fiber interface; One Full Single RS232 Interface

Power

Power supply: AC180V ~ 260V;DC –48V;DC +24V

Power consumption: ≤10W

Dimension

Product Size: 103 X 93 X 28mm (W X D X H)

Weight

1.2KG

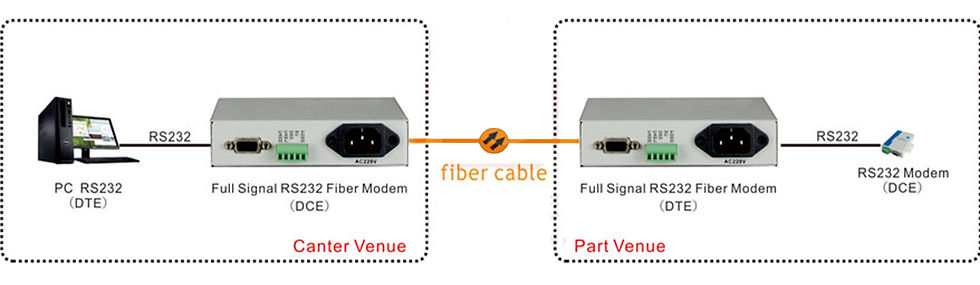

Application



Product Gallery
