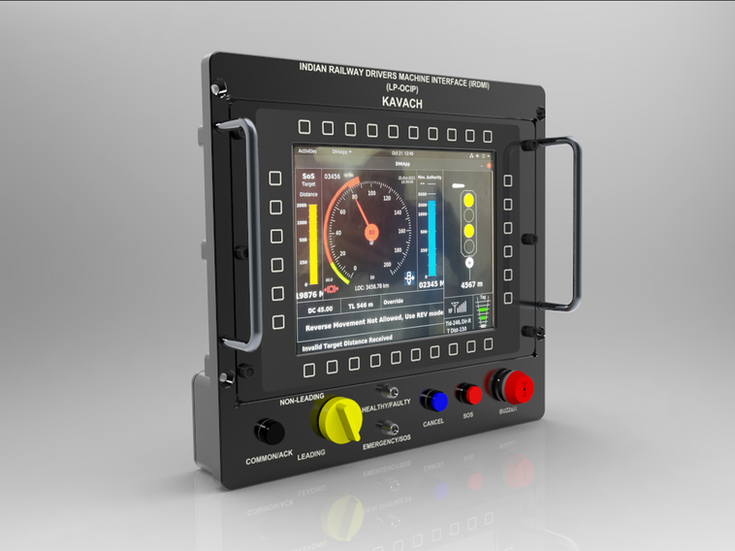

Drivers Machine Interface (LC-OCIP) DMI-ITR8100
EN50155 10.4" Fanless Railway Touch Panel PC with Intel Atom® x7-E3950 Processor (-40 ~ 70 °C/-40 ~ 158 °F (85 °C/185 °F for 10 minutes) Certified for extreme railway conditions, this device offers unparalleled reliability and performance for demanding HMI applications in the railway sector. (*Designed for Railway Applications, particularly for KAVACH or Train Collision Avoidance System)
Introduction
DMI-ITA-8100 touch panel PC is a fanless human machine interface (HMI) aimed at railway applications. DMI-ITA-8100 features a 10.4" display with projective capacitive touchscreen. The panel’s small and flat design offers space savings for installation in driver cabins, while the configuration flexibly allows it to be adjusted for specific applications and different train models. Designed to withstand operation in harsh environments which meets EN 50155 railway regulations.
Designed for Railway Application
The Device is particularly suitable for demanding HMI applications in the railway sector, including tasks like monitoring and controlling such as speed, temperature, and security, or for fleet management, specifically designed for integration with KAVACH / TCAS system. To ensure reliable operation in a variety of various locations, the 10.4-inch railway panel PC supports various mounting options: wall mount and VESA mount. Moreover, it is also ready for Windows® 10 IoT, Windows® 10, 7 & Ubuntu.
Specifications
Dimensions
Packaging List
1 x DMI-ITR8100 unit |
Optional Accessories
ITA8-CBLE-01 | Cable Kit 1 x Power: M12 A-coded 4 pin (F) to Y type terminals, 50cm 2 x COM: M12 A-coded 5 pin (M) to D-sub 9 pin (M), 20cm 2 x LAN: M12 X-coded 8 pin (M) to RJ45 (F), 100cm 1 x USB: M12 A-coded 4 pin (M) to USB Type-A (F), 50cm |
ITA8-2DB9-01* | Expansion Kit provides extra connection for COM, CAN, DIO or MVB |
ITA8-3SMA-01* | Expansion Kit provides extra connection for GPS, WiFi, LTE or GSM-R |
Optional OS Installations
Windows® 7 |
Windows® 10 |
Windows® 10 IoT |
Ubuntu 20.04 and above |
Ordering Information
Product Code | 9101-901-005 |
Product Name / Model | Driver Machine Interface (LC-OCIP) / DMI-ITR8100 |
Contact Email ID / Phone Number | contact@seloriz.com / +91 8310497806 |
